 : (Stock list) لیست تجهیزات موجود

v

v Danfoss AC Drives



1. VTL Micro drive - model : FC51

The small drive with maximum strength and reliability

Power range
                     1 phase 200–240 V AC 0.18–2.2 kW
                     3 phase 200–240 V AC 0.25–3.7 kW
                     3 phase 380–480 V AC 0.37–22 kW

2. VLT HVAC Drive-model : FC 101/102

HVAC Drive series is available in a wide power range designed for all HVAC applications

Power range

                     3 x 200 – 240 V 1.1 – 45 kW
                     3 x 380 – 480 V 1.1 – 1000 kW
                     3 x 525 – 600 V 1.1 – 90 kW
                     3 x 525 – 690 V 1.1 – 1400 kW

3. VLT AQUA Drive -model : FC 202

30% cost reduction in 1st year

Power ranges and cabinet sizes:

                       1.1-7.5 kW (A3 enclosure size)

                       11-30 kW (B4 enclosure size)

                       44-55 kW (C3 enclosure size)

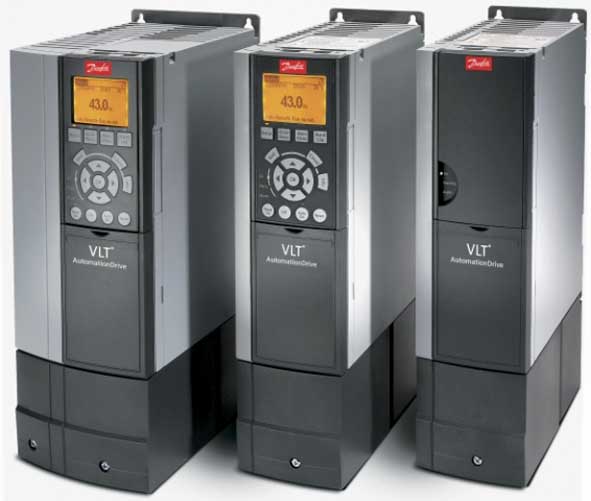

4. VTL Automation drive - model : FC301/302

Flexible and expandable

Power range
                     3 x 200 – 240 V 0.25 – 37 kW
                     3
x 380 – 480/500 V 0.37 – 800 kW
                     3
x 525 – 600 V 0.75 kW – 75 kW
                     3
x 525 – 690 V 1.1 kW – 1.2 MW

v Danfoss Soft Starter

1. VLT Soft Start Controller – model : MCD 100

cost effective and extremely compact soft starter for AC motors

Power Range

                       MCD 100-001 1,5 kW

                       MCD 100-007 7.5 kW

                       MCD 100-011 11 kW

    2. VLT Compact Starter -model : MCD 200 / 202

Heavy starting ratings at 4x Ie for 20 seconds

Power Range

                       7.5 – 110 kW

3. VLT Soft Starter-medel : MCD 500

Current transformers measure motor current and provide feedback for controlled motor ramp profiles

  Power Range

                       21 – 1600 A, 7.5 – 850 kW (1.2 MW inside Delta ­Connection)

                       Versions for 200 – 690 VAC
